Figures 11 through 20

Fig. 11 - Fig. 12 - Fig. 13 - Fig. 14 - Fig. 15 - Fig. 16 - Fig. 17 - Fig. 18 - Fig. 19 - Fig. 20 - Table 1





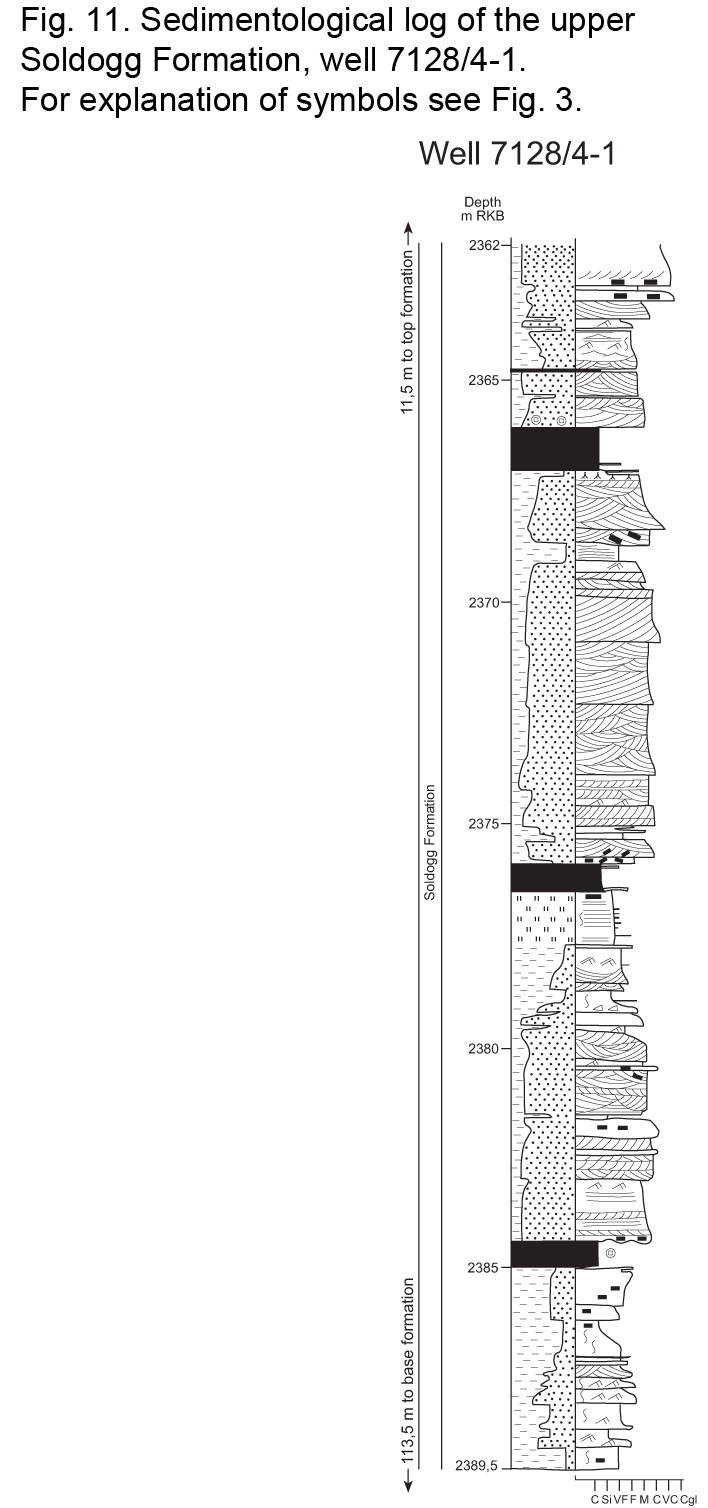

Fig11

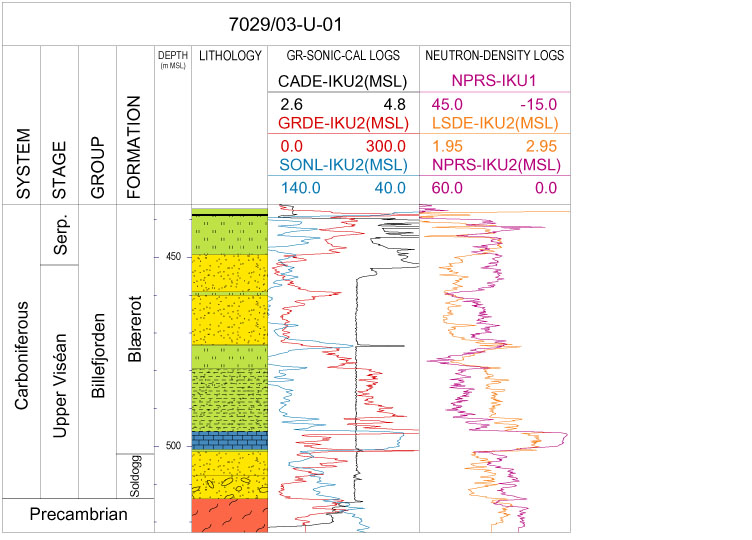

Fig. 12. Reference section of the Soldogg Formation and type section of the Blærerot Formation

in core 7029/03-U-01. For explanation of symbols see Fig. 3.



Fig12

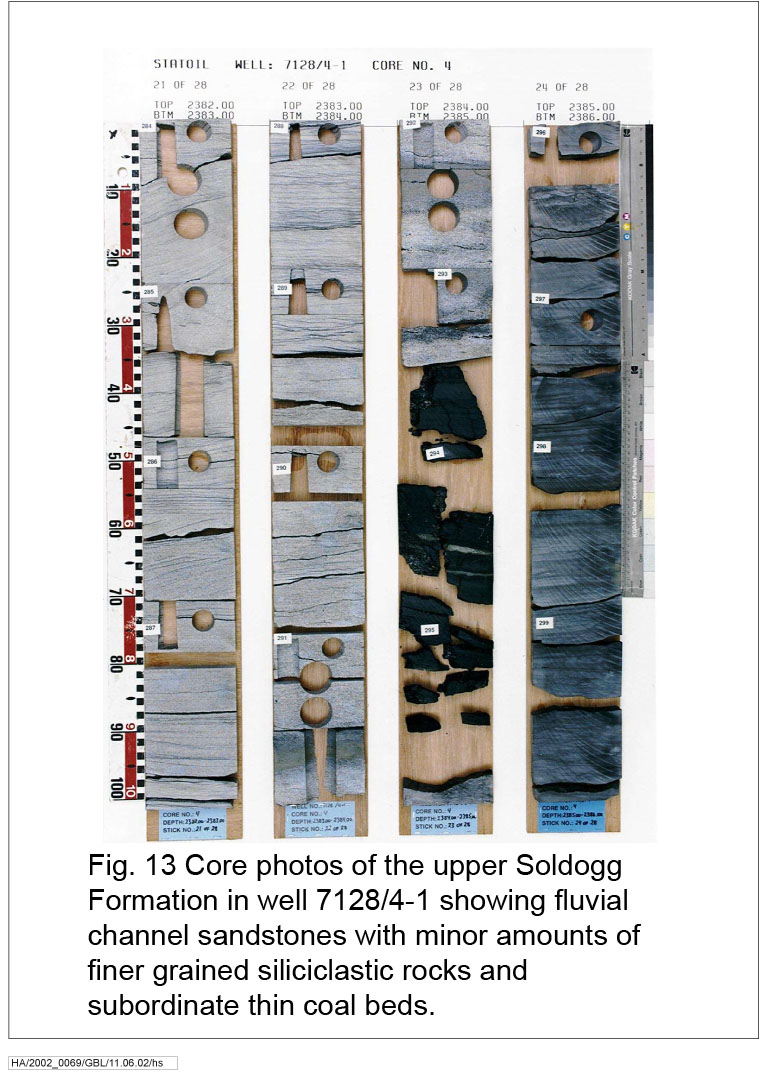

Fig. 13

Fig13





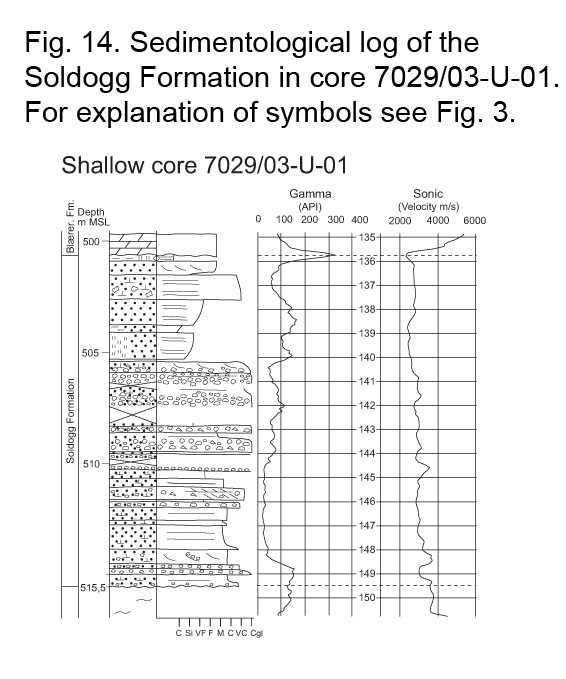

Fig14

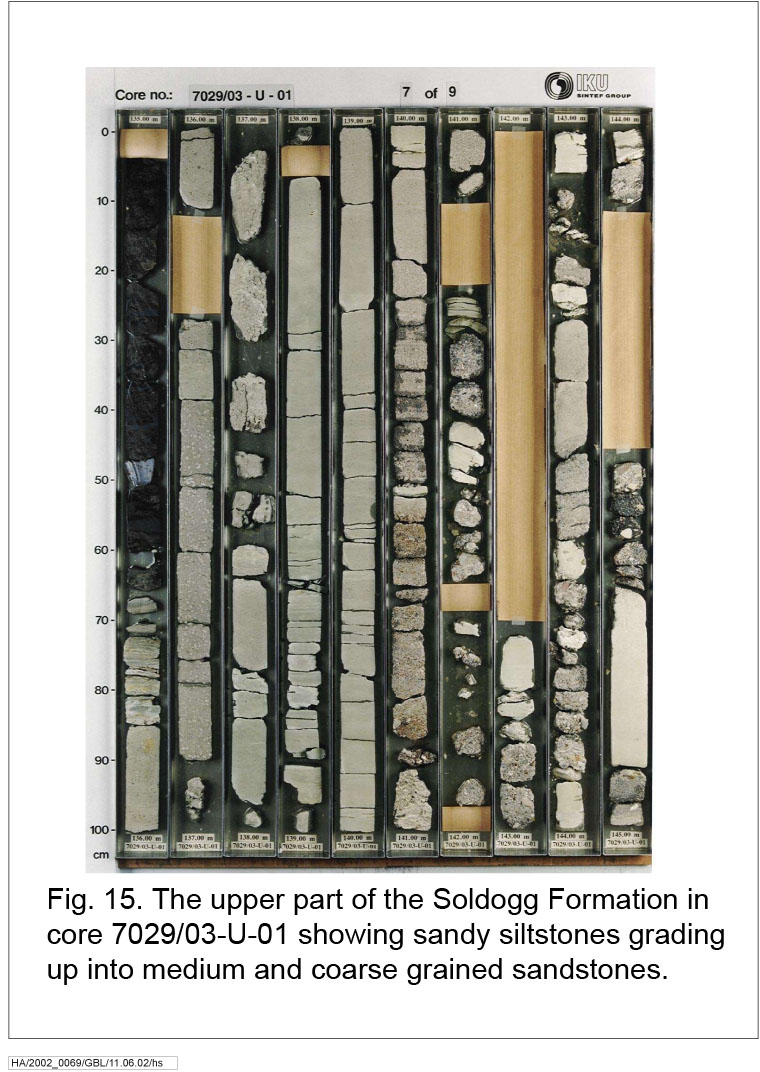

Fig. 15.



Fig15











Fig 16





Fig17



Fig.18

Fig18

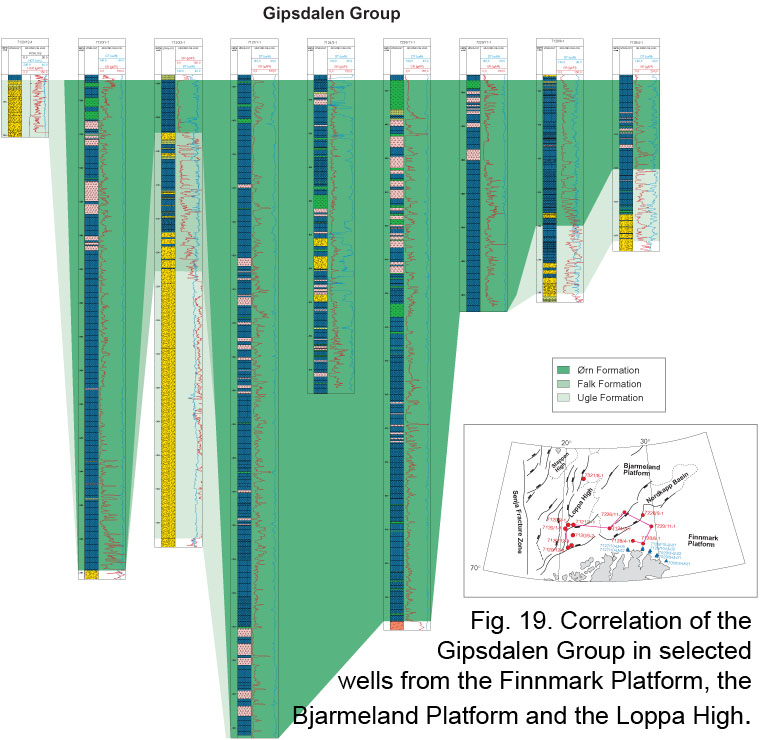

Fig. 19



Fig19

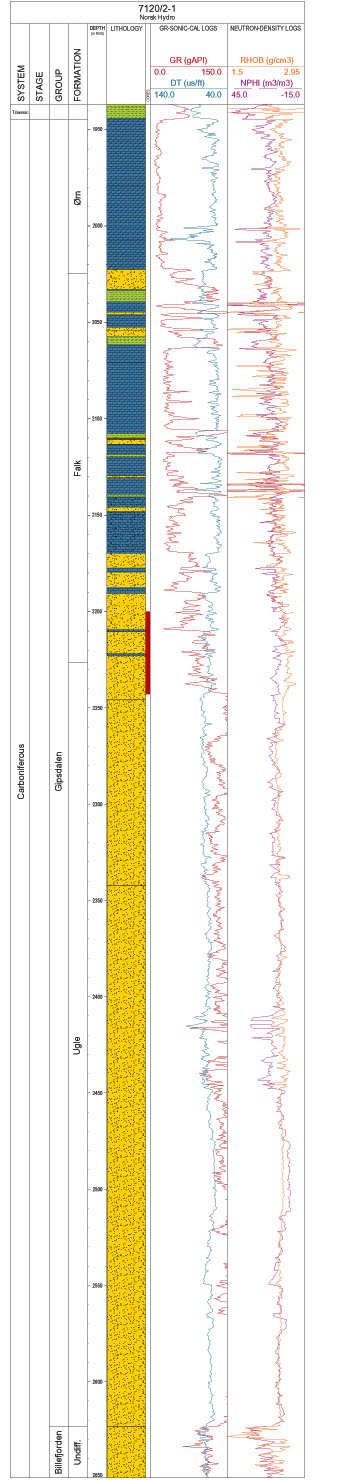

Fig. 20. Well logs of the type sections of the Ugle and Falk formations and of the reference section of the Ørn Fm in 7120/2-1. For explanation of symbols see Fig. 3.



Fig20



Back to top

Tab1

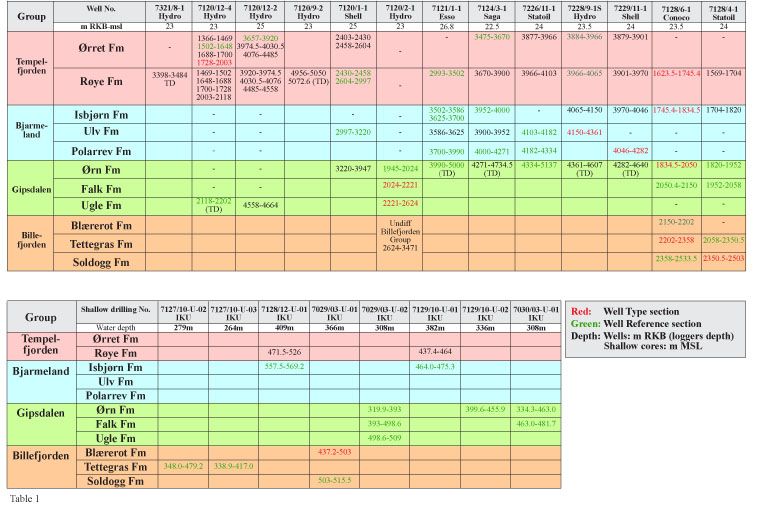

Table 1. Wells and shallow cores penetrating the Upper Palaeozoic succession in the southern Norwegian Barents Sea, with formational intervals (well depths RKB, core depths relative to MSL).
