Grindhval Member [new]

updated to follow: Stratigraphic Guide to the Cromer Knoll, Shetland and Chalk Groups of the North Sea and Norwegian Sea. Felix M. Gradstein & Colin C. Waters (editors), Mike Charnock, Dirk Munsterman,  Michelle Hollerbach, Harald Brunstad, Øyvind Hammer & Luis Vergara (contributors). Newsletter on Stratigraphy, vol 49/1 pp71-280, 2016

Shetland Group, Springar Formation


The Grindhval Member consists of sandstones and interbedded mudstones present around the Ormen Lange Field, located in the eastern Møre Basin. The unit is assigned a Maastrichtian age and occurs below the Egga (reservoir sandstone) Member assigned to the Paleocene. The bulk of the Grindhval sandstones were deposited as high or low density gravity flows and turbidites, sourced from the Norwegian mainland to the east.



English/ Norwegian and any previous names: Upper Cretaceous, Maastrichtian turbidite sandstones were first described in core in the Møre Basin area by Gjelberg et al. (2001) from the Ormen Lange Field. These were collectively and informally assigned to the Jorsalfare Formation using the North Sea lithostratigraphic terminology sensu Isaksen and Tonstad (1989).

Derivatio nominis: The name Grindhval comes from the Norwegian for the small pilot whale Globicephala melas, usually between 4-6m size and found commonly along the northern Norwegian coastline and in the open sea around Greenland and Iceland in the Norwegian Sea.


The Grindhval Member consists of sandstones with interbedded mudstones.

The sandstones are medium grey to light olive grey, with clear to translucent quartz grains and occasionally pink quartz, very fine to medium grained, occasionally coarse grained, moderate to well sorted, sub-angular to sub-rounded, friable to firm, moderately hard, occasionally very hard, slight to moderate calcareous cement, occasionally very calcareous, micro-pyritic, rarely micaceous and glauconitic, occasionally slightly argillaceous, with fair to good visible porosity in parts.

The mudstones are medium dark grey to dark grey, olive grey to dark green-grey, moderately hard to hard, sub-fissile to sub-blocky, occasionally very fine sandy in parts, micaceous to micro-micaceous, rarely glauconitic, with generally abundant micro-pyrite, slightly to moderately calcareous or occasionally very calcareous, occasionally grade to siltstones.

One or two thin (< 15cm) bioturbated chalk beds maybe developed in the upper part of the member  (observed in core).


The Grindhval Member varies in thickness from 8m to 36m based on released well data.

Geographical distribution

Sandstones of the Grindhval Member are geographically restricted to the Ormen Lange sub-basin (Quadrant 6305), located on the eastern margin of the Møre Basin. In the Ormen Lange Field, the member reaches its maximum drilled extent, varying from 18m e.g. 6305/4-1 to 36m e.g. 6305/7-1, but is usually about 30m thickness.

To the east of the field, in the Slørebotn sub-basin and in up-dip locations, it is either thin and partially eroded, e.g. in well 6305/9-1 (8m), 6305/12-1 (13m) or absent, e.g. in well 6306/10-1. The absence is the result of erosion by the overlying Egga Member.

To the west and north, including the northern part of the Ormen Lange Dome, e.g. in well 6305/1-1, the member passes laterally into time equivalent Springar mudstones.

Sample depository

Palynological preparations (organic matter depository)

Type well 6305/5-1: 19 slides from core samples covering the interval 2782.45m – 2812m deposited at the NPD (RRI and OD preparations).

Reference well 6305/8-1: 10 slides from 4 core pieces and 6 ditch cuttings samples covering the interval 2978.28m core- 3003m dc deposited at the NPD (RRI preparations).

Core photographs

The Grindhval Member was cored in its entireity in the type well 6305/5-1 and described by Gjelberg et al. (2001 figure 4). The core included the lower boundary within the Springar Formation and the upper boundary with the overlying Paleocene Rogaland Group, Tang Formation. The upper boundary was also cored in the reference well 6305/8-1.

Type well 6305/5-1: core# 4 - core#6 (2771.75mMD RKB – 2816.3mMD RKB). The core covers the entire section with a minor gap between 2783m -2790m.

Reference well 6305/8-1: core # 4 and core #5 (2959.1mMD RKB – 2987.65mMD RKB) covering the majority of the member and the upper boundary with the overlying Tang Formation, Rogaland Group.

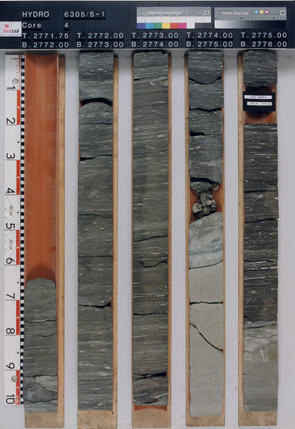

6305/5-1, 2771-2776 m

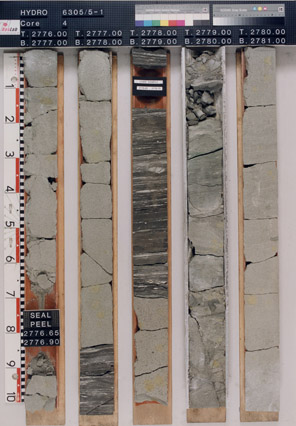

6305/5-1, 2776-2781 m

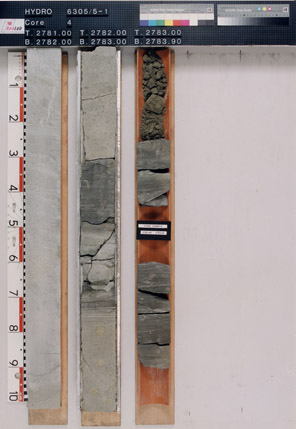

6305/5-1, 2781-2783 m

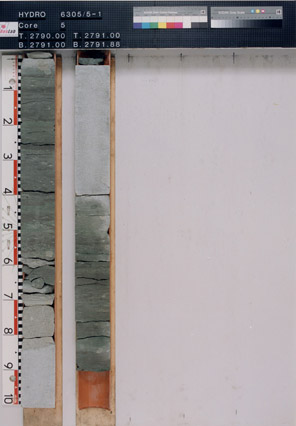

6305/5-1, 2790-2792 m

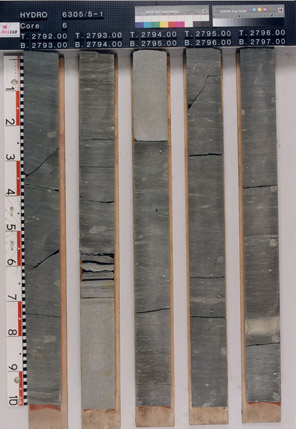

6305/5-1, 2792-2797 m

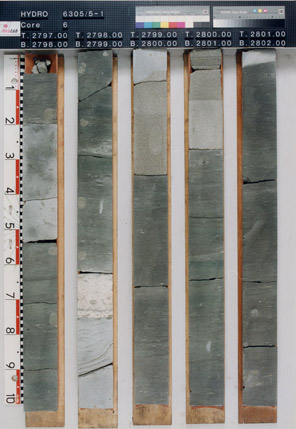

6305/5-1, 2797-2802 m

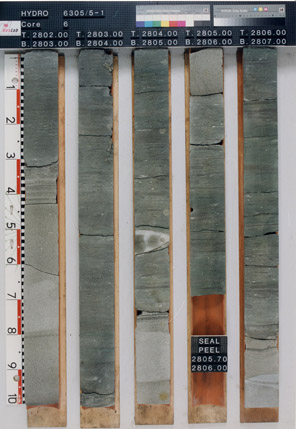

6305/5-1, 2802-2807 m

6305/5-1, 2807-2812 m

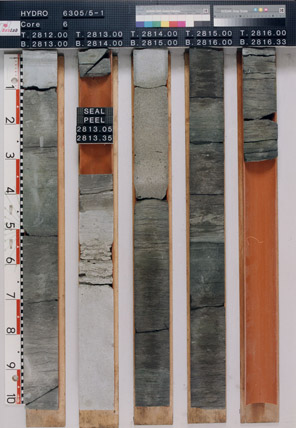

6305/5-1, 2812-2816 m

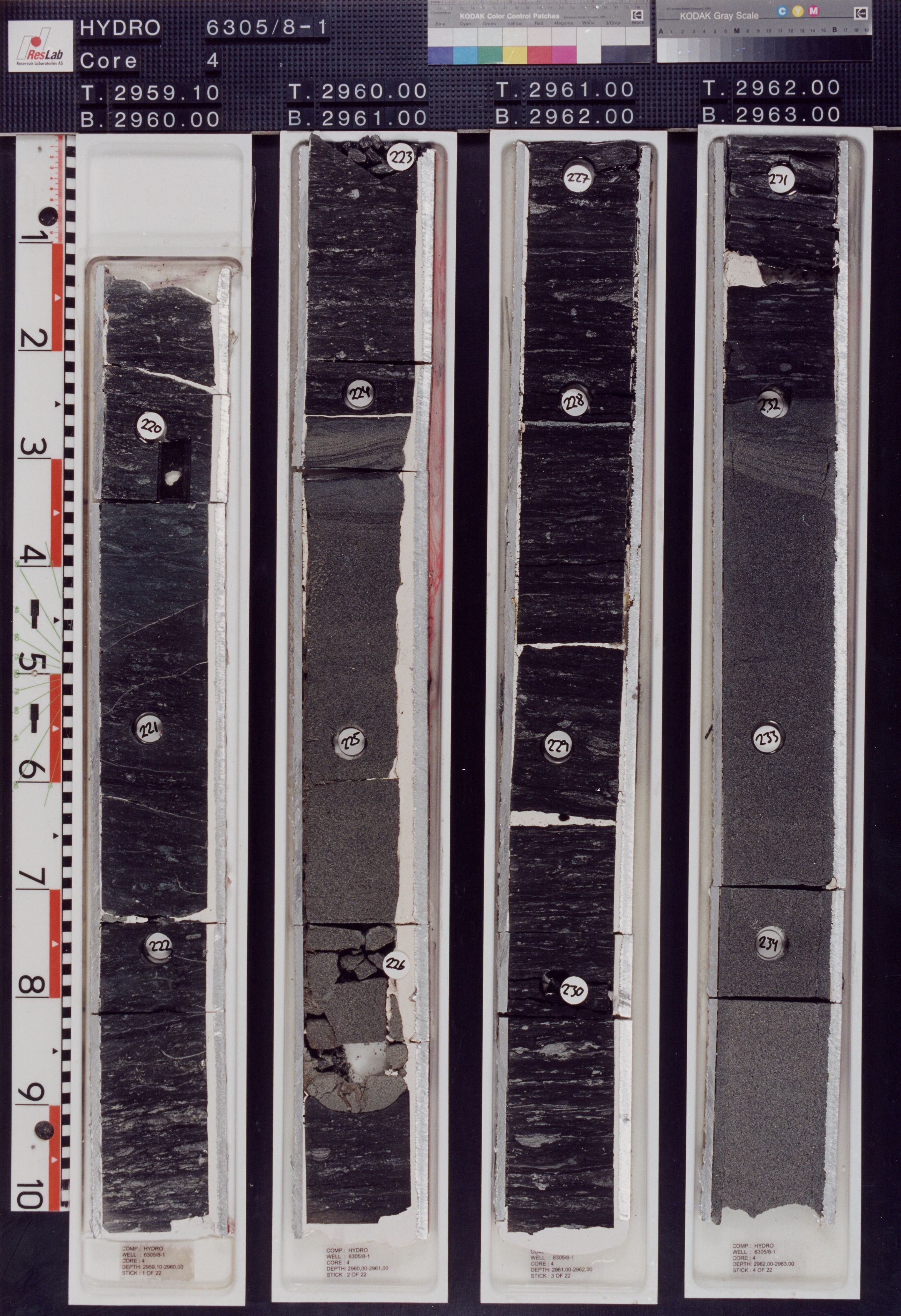

6305/8-1, 2959-2963 m

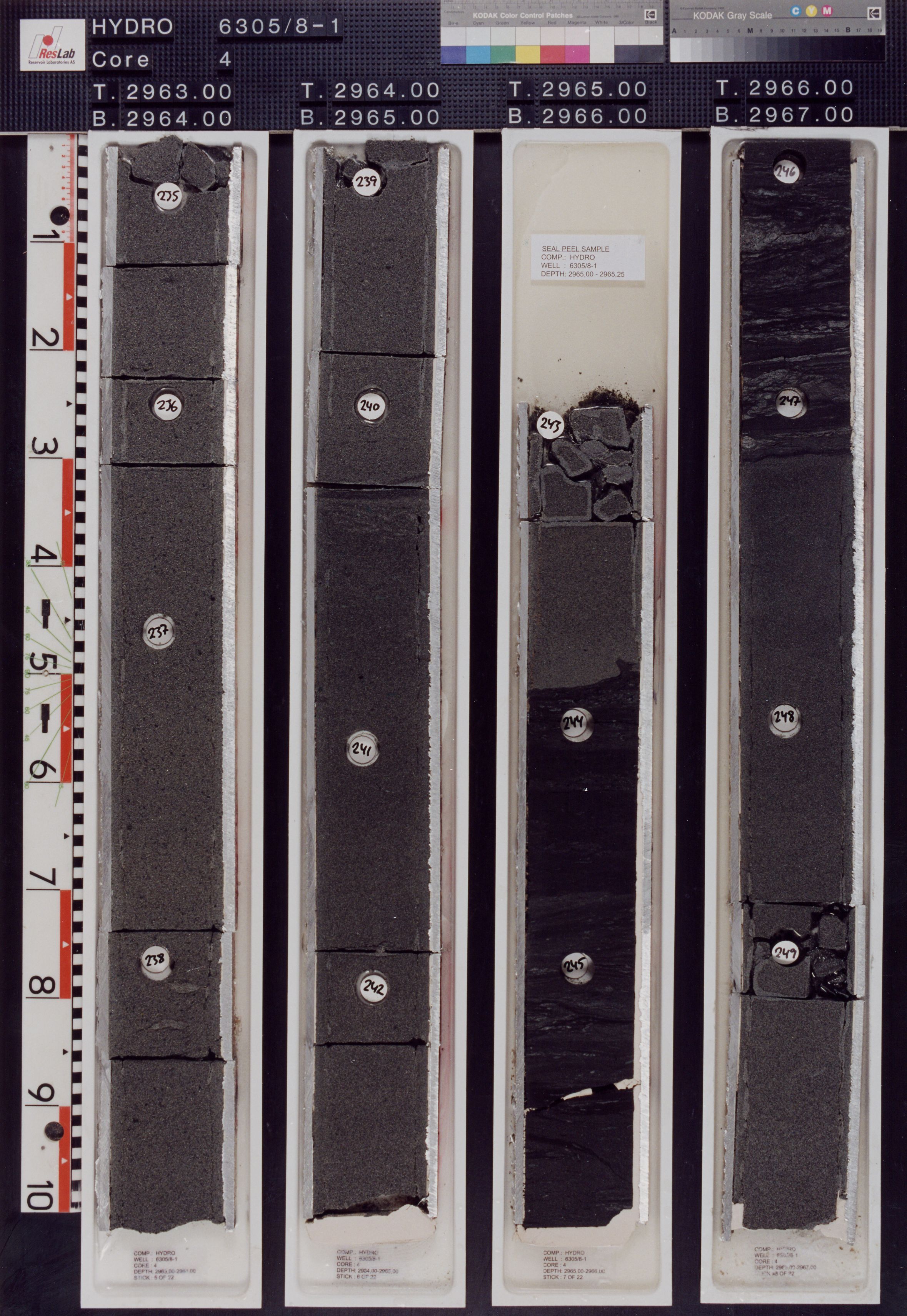

6305/8-1, 2963-2967 m

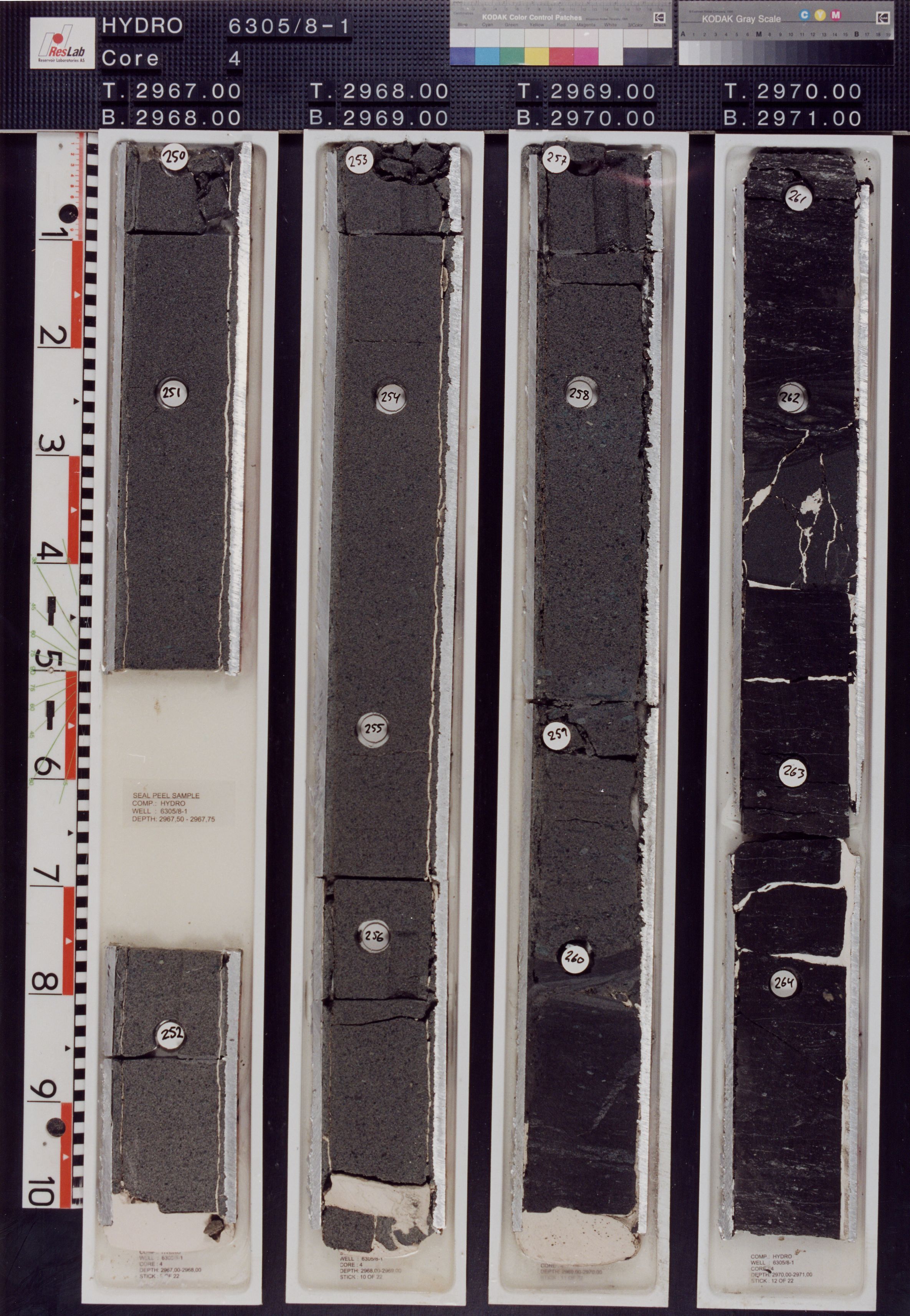

6305/8-1, 2967-2971 m

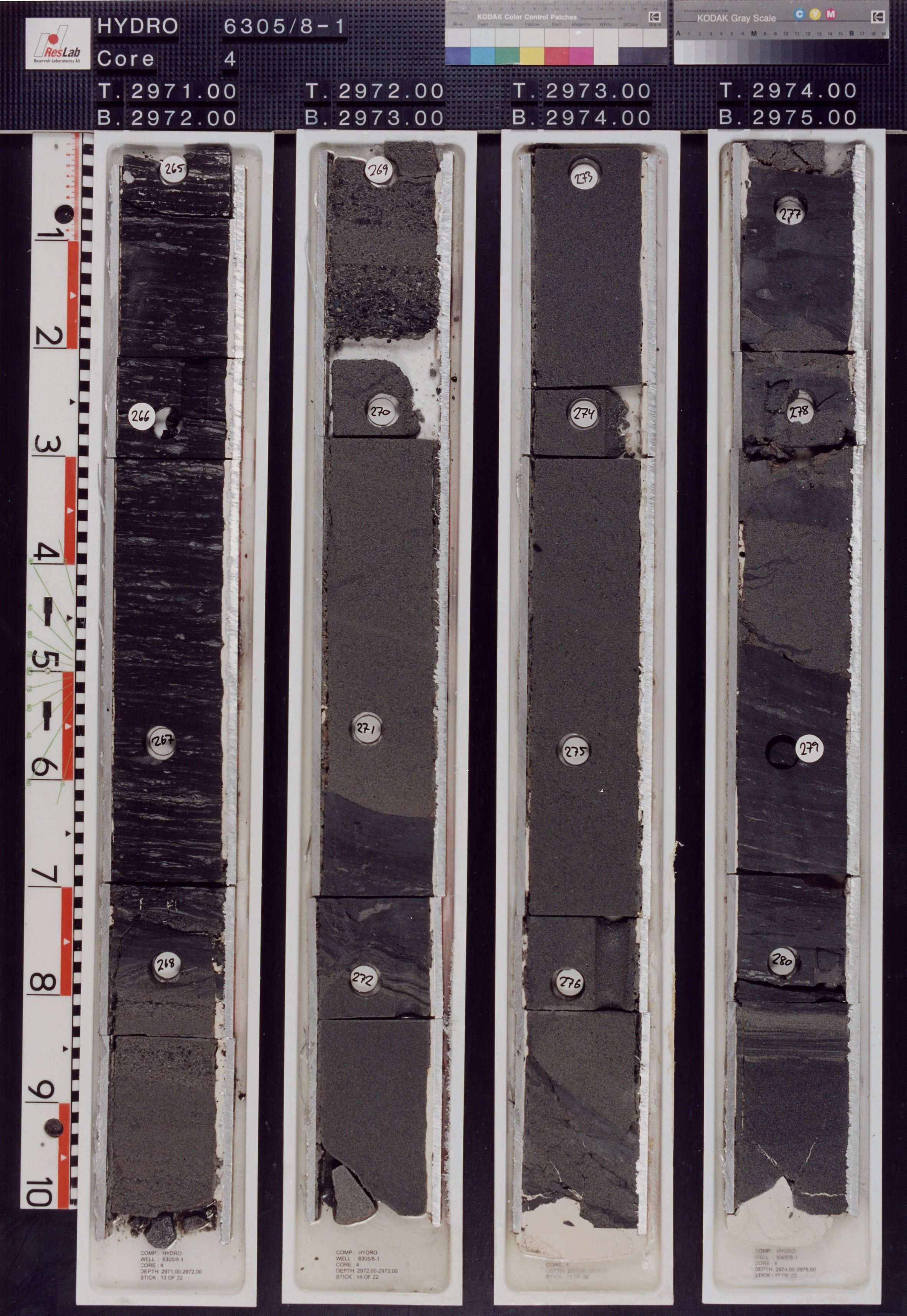

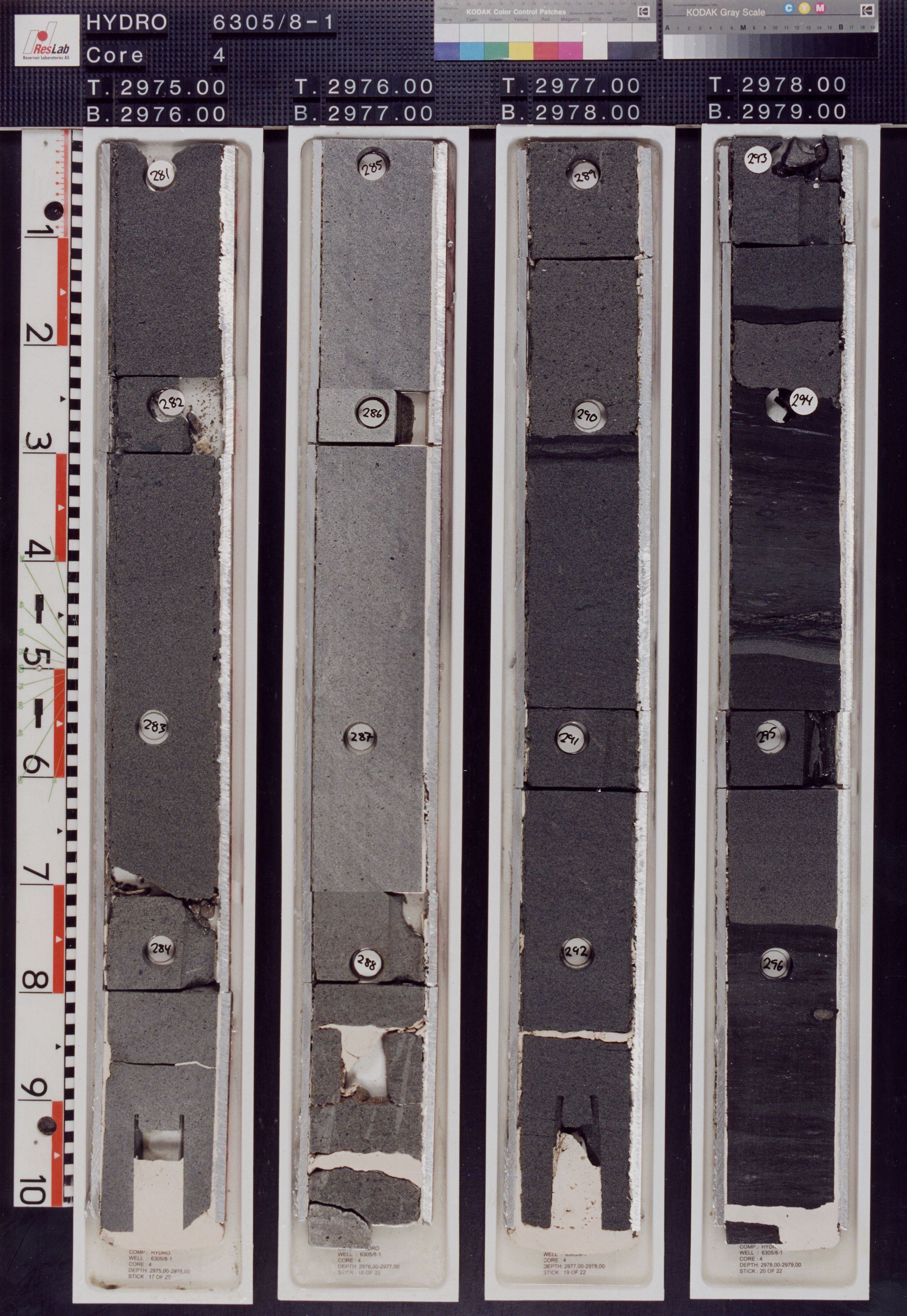

6305/8-1, 2971-2975 m

6305/8-1, 2975-2979 m

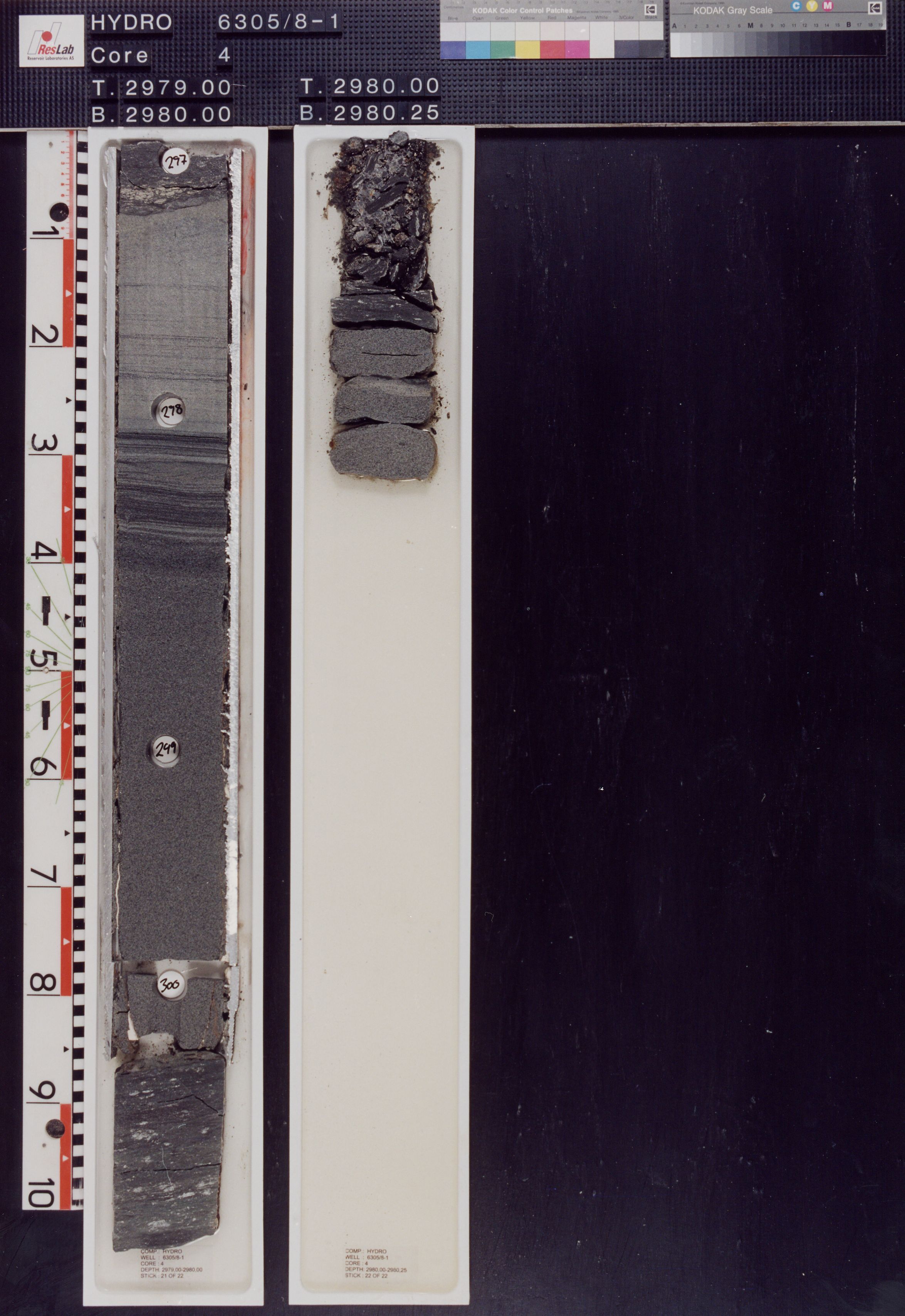

6305/8-1, 2979-2980 m

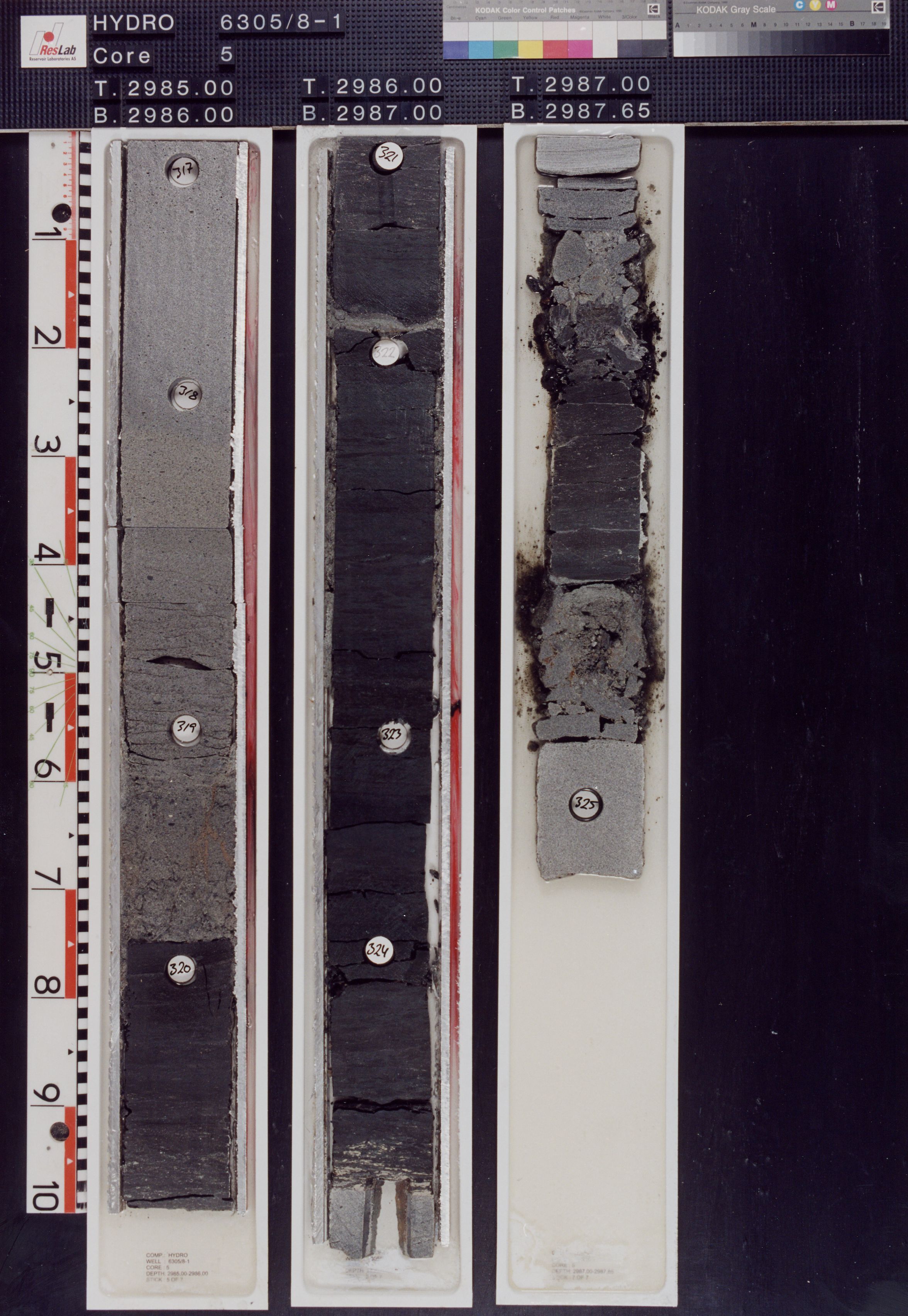

6305/8-1, 2985-2988 m

Published core description 6305/5-1, by Gjelberg (PDF)


Type well

Well name: 6305/5-1
WGS84 coordinates: N 63°32'27.50, E 5°20'14.90
UTM coordinates: 7048160.15 N 616189.14 E
UTM zone: 31
Drilling operator name: Norsk Hydro Produksjon AS
Completion date: 07.10.1997
Status: Suspended
Interval of type section (m) & thickness in type well (m): 2813.5m (2814.4m core depth) – 2779m (log) (2779.3m core depth) and 34.5m thickness.

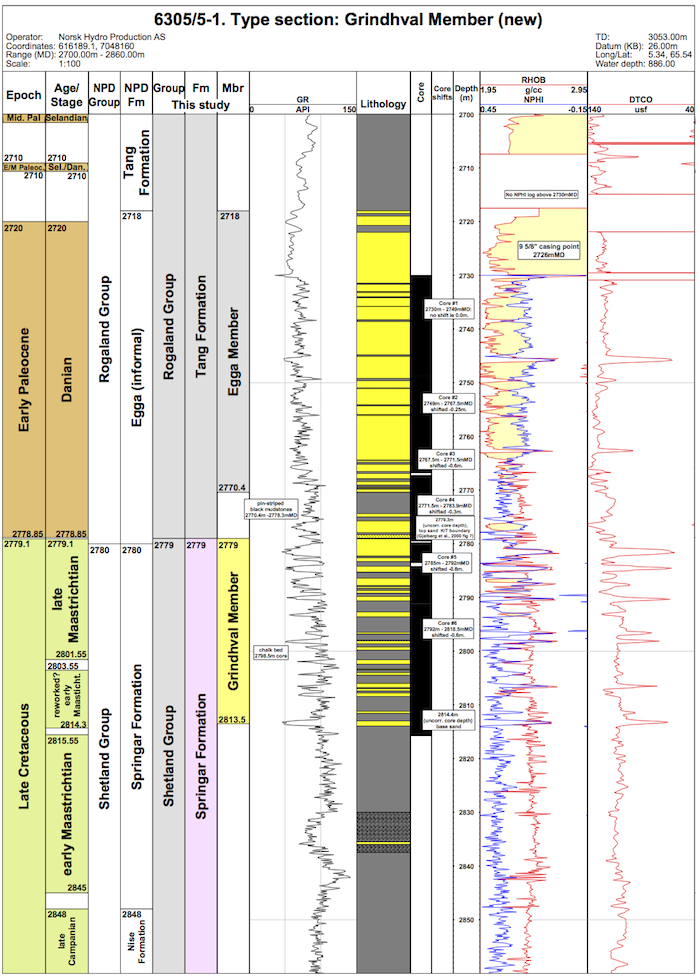

Grindhval Member in type section. Click to enlarge.

Reference well

Well name: 6305/8-1
WGS84 coordinates: N 63°28'34.70, E 5°24'14.40
UTM coordinates: 7041080.68 N 619765.50 E
UTM zone: 31
Drilling operator name: Norsk Hydro Produksjon AS
Completion date: 08.09.2000
Status: P & A
Interval of reference section (m) & thickness in reference well (m): 3005m - 2972m (2971.8m core depth) and 33m thickness.

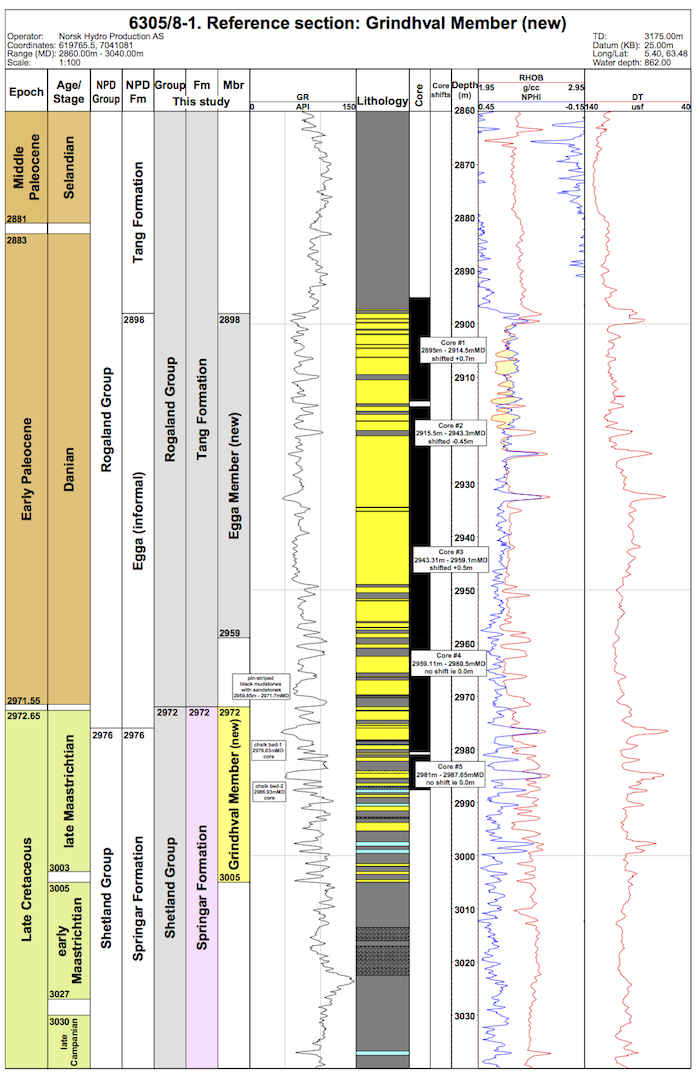

Grindhval Member in reference section. Click to enlarge.

Upper and lower boundaries

Upper Boundary

In the type well 6305/5-1, the top of the Grindhval Member coincides with the top of the Springar Formation. This reflects a change in sedimentation at the C/P boundary from greenish and frequently calcareous mudstones, typical of the upper of the Springar Formation, and associated Grindhval Member to hemipelagic, black and non-calcareous mudstones of the Tang Formation.

         In addition to differences in the ‘background’ mudstones, the sandstones in the upper part of the Grindhval Member are frequently carbonate cemented, and may be distinguished from those of the overlying Egga Member by high sonic velocity.

Lower Boundary

The base of the Grindhval Member is marked by the down section change from sandstones with interbedded mudstones to a unit of siltstones in the lower part of the Springar Formation. It is well defined on wireline logs by an abrupt downward increase in gamma-ray values and a marked decrease in sonic velocity. In the type section 6305/5-1, where the boundary is cored, the base of the member can be seen below the thin sandstone bed at 2814.4mMD (2813.5m corrected depth).

Well log characteristics

In the type well 6305/5-1, the gamma log of the Grindhval Member shows a typical serrate profile with an overall upward trend from a spiky log character, reflecting the thin sandstone bedded nature of the lower part, to thicker, sub-blocky log characters developed towards the top of the member. The latter reflects an increase in the proportion of thicker sandstone beds. In well 6305/7-1, located in the southern part of the Ormen Lange Field, the upper part of the Grindhval Member has generally thicker and more frequent sandstone beds and a blockier log character.


The Grindhval Member is well constrained both micropaleontologically and palynologically. Planktonic Foraminifera are common in the upper part, and are particularly associated with two chalk beds (see correlation below).

The member is developed below the LO of late Maastrichtian planktonic Foraminifera, including LO Rosita contusa, LO Abathomphalus mayaronsis, LO Racemiguembelina fructicosa, LO Globigerinelloides asperus, LO Heterohelix spp. and the dinocyst LO Palynodinium grallator. The base is close to the LO Alterbidium acutulum (early Maastrichtian) and above LO Odontochitina operculata.

The sporadic record of the dinocyst marker Hystrichodinium pulchrum, within the lower part of the member in the type well 6305/5-1, is considered to be due to intra-formational reworking from up-slope locations.


Late Cretaceous, late Maastrichtian. With the available data, this member appears to be restricted to the late Maastrichtian with some reworking of early Maastrichtian palynomorphs. The base of the member appears to be close to the early/late Maastrichtian boundary.


In the north of the Ormen Lange Field, e.g. in well 6305/1-1 T2, the Grindhval Member passes laterally into mudstones of the Springar Formation. South of 63° N the member grades laterally into mudstones of the Jorsalfare Formation.

Minor un-named sands within the Træna Basin, north of the Trøndelags Platform e.g. in well 6710/10-1, are time equivalent of the Grindhval Member. These sands are also presumably sourced from the Norwegian mainland. They are slightly younger than the Hvithval Member in the Vøring Basin that is interpreted as being sourced from east Greenland.

On a local, field-scale, one or two, thin (<15 cm) chalk beds appear to be correlatable across the Ormen Lange Field, where core is available. These are characterised by common planktonic foraminifera Rugoglobigerina rugosa and Globigerinelloides asperus, and provide correlative horizons within the upper part of the member.

The change in background sedimentation from green, bioturbated mudstones of the Grindhval Member to black or grey, pin-stripped mudstones of the overlying, lowermost Tang Formation provides a correlative event at the top of the member.


Depositional environment

The depositional environment of this member in well 6305/5-1 has been described in detail by Gjelberg et al. (2001) under their discussion of the Maastrichtian Jorsalfare Formation of the Ormen Lange Field.

The geometry of the submarine fan system and the basin physiography is described by Møller et al. (2004).

The core log for well 6305/5-1 illustrated by Gjelberg et al. (1999) and their annotated core photographs are reproduced here. Their facies terminology is also adopted in the following discussion of the depositional setting for the Grindhval Member.

Overall, the Grindhval succession shows a poorly defined, sandier upwards development that is combined with a thickening upwards of individual sandstone beds. In general terms, Gjelberg et al. (2001) interpreted the section in well 6305/5-1 as representing deposition in a mainly outer fan setting on the basin floor of primarly non-channelised lobe deposits under turbiditic processes.   The sandstones were sourced into the Ormen Lange sub-basin from the Norwegian mainland via a narrow shelf developed along the eastern margin of the Møre Basin. In the Ormen Lange Field, the thickest sand development is in well 6305/7-1 in the southern region where more than 20m of sand-dominated facies are recorded. Northwards, sandstones decrease and in the 6305/1-1 T2 well sand is absent although the time equivalent isochore increases in thickness. This thickening towards the northwest maybe explained by interfingering of the Ormen Lange system with other fine grained systems derived from the north or west.

In detail, the lower part of the Grindhval Member consists mainly of thin bedded and massive or vaguely laminated sandstones (Facies A – sandy high density turbidites), and graded bedded, fine to medium grained sandstones (Facies B or low density “classical” turbidites”). These are interbedded with thick beds of green and grey highly bioturbated and calcareous mudstones (Facies D) interpreted to represent mainly fine-grained, sediments deposited from suspension in a relatively deep water column, probably far below storm wave base. The microfaunas of agglutinated foraminfera are indicative of upper bathyal depths. The thick bedded nature of the background mudstones indicates that at the onset of Grindhval deposition, the background sedimentation was more or less uninterrupted for long periods of time between each turbidity current event.

A 13cm bed of bioturbated chalk (Facies F) with Planolites, Zoophycos and possibly Taenidium satanassi trace fossils is present in the middle part of the Grindhval Member in well 6305/5-1 and rests, with a sharp base, on top of a high density turbidite current. In spite of its relative thinness, this chalk and others recognised in well 6305/8-1 are correlatable in other wells on the field where core is available. Gjelberg et al. (2001) interpreted this rare bed as being deposited under suspension in a brief period favourable for the production of coccoliths (and planktonic foraminifera).

According to Gjelberg et al. (2001), the upper part of the Grindhval Member contains more or less the same facies as in the lower part of the succession, with alternating high-density currents (Facies A) and green and dark-grey mudstones (Facies D). The main difference is that the individual turbidites are thicker, are commonly amalgamated and are separated by thinner mudstone intervals between the turbidites. This suggests that the frequency between each individual turbidite event increased.

Towards the top of the Grindhval Member and located at the K/C boundary in well 6305/5-1 (between 2779.65m- 2780m uncorrected core depths) is an atypical, relatively thick, deformed sandstone with contorted bedding and broken sandstone fragments that is commonly associated with sand injection (Facies G).

Overlying the sandstones of the Grindhval Member, at a level just above the K/C boundary is an interval of hemipelagic black and dark grey, non-calcareous mudstones with millimetre- scale thin laminae of silt or fine grained sandstones (Facies E). These ‘pin-stripped mudstones’, as they have been known, are distinct from the green mudstones developed both above and below this facies and the degree and diversity of bioturbation is generally low (BI 1 to 2) with only rare Planolites traces. This distinct facies and interval separates the Grindhval Member from the overlying Egga Member in the basal part of the Paleocene succession and appears to be a deep water and high latitude expression of the C/T boundary event or some significant change in basin physiography. Irrespective of its depositional origin, this interval provides a distinctive lithological feature to distinguish sandstones of the Cretaceous Grindhval Member from those of the overlying Paleocene Egga Member.
